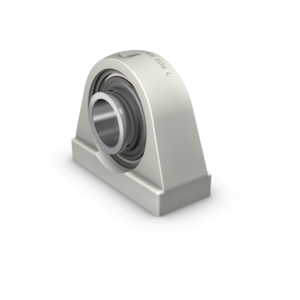

SKF 2HOLETAKEUP UNIT SYFWK 40 LTHR
SYFWK Y-pillow block bearing Food-line with threaded pins
References
skf:SYFWK 40 LTHR
rubix:102A5585
manufacturer :447152
ean:07316574958863
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 88.9 mm |
| Shaft Height | 49.2 mm |
Product details : SKF 2HOLETAKEUP UNIT SYFWK 40 LTHR
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Strengths
- Designed for a constant and alternating rotation
- Excellent corrosion resistance
- Lightweight
- Recyclable
- Excellent corrosion resistance
- Lightweight
- Recyclable
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 54,2x120x40 mm |
|---|---|
| Logistic Weight | 867 g |
| Inner diameter | 40 mm |
| Fixation centre-to-centre distance | 88.9 mm |
| Shaft Height | 49.2 mm |
| Material | Composite material for food and beverages |
| Height | 100.5 mm |
| Length | 120 mm |
| Total bearing width | 49.2 mm |
| Series | SYFWK |
| Number of holes | 2 |
| Basic static load, radial - C0r | 19000 N |
| Basic dynamic load, radial - Cr | 24700 N |
| Outer diameter | 100.5 mm |
| Width | 48 mm |
