RENOLD GY60A1S26I 119067-NO26

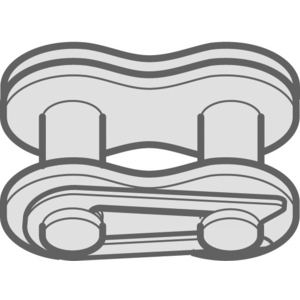

Synergy 60A-1 single connecting element - loose fit no. 26

References
renold:GY60A1S26I
rubix:45033810
ean:0673766012589
Technical specifications
Chain pitch19.05 mm
ProfileSimplex (1)
ChainASA 60-1
See all Specifications

Product details : RENOLD GY60A1S26I 119067-NO26


Renold Synergy has achieved an unsurpassed reputation as the only true high-performance roller chain on the market. This is based not only on years of research and testing, which have been incorporated into their design, but is also the answer of engineers around the world who have confirmed wear resistance, fatigue resistance and exceptional durability that they have achieved with the specification of Renold Synergy.
High performance chains: Synergy connecting element

Technical specifications


Attributes
Chain pitch19.05 mm
ProfileSimplex (1)
ChainASA 60-1
ISO code12A-1
MaterialSteel
Inner width min.12.57 mm
Roller diameter11.91 mm
Pin length25.3 mm
Tensile strength min.31.3 kN
Plate height17.5 mm
Plate thickness2.45 mm
Inner link width2.45 mm
Plate typeCurved
Chain pin diameter5.94 mm
Show UNSPSC/ECL@SS
£ 5.69 excl. VAT
/ Each
£ 6.83 incl. VAT
  • In stock: Next day delivery
