Tapered roller bearing Timken 369AS-90070, Outer diameter: 90 mm | Inner diameter: 47.625 mm | Width: 40.132 mm

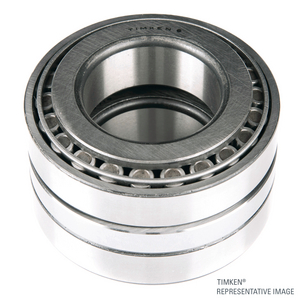

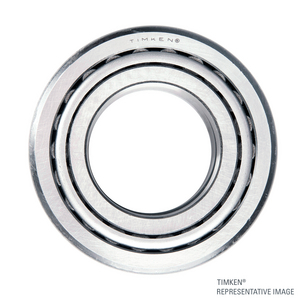

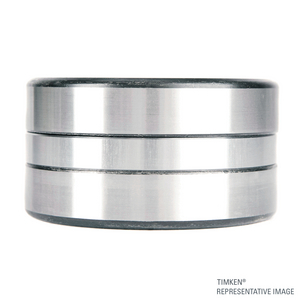

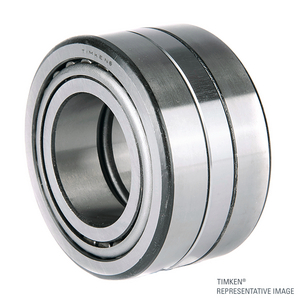

Tapered Roller Bearing Double Cup Assembly
References
timken:369AS-90070
rubix:397A5017
manufacturer :100057547
ean:0053893016474
Technical specifications
| Inner diameter | 47.625 mm |
|---|---|
| Outer diameter | 90 mm |
| Width | 40.132 mm |
Product details : TIMKEN 369AS-90070 TAPERED ROLLER BEARING
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Strengths
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Applications
Heavy-duty gear drives; Various industrial configurations
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 40,132x89,916x89,916 mm |
|---|---|
| Logistic Weight | 1178 g |
| Packaged dimensions (D x W x H) | 93,6752x93,6752x62,0776 mm |
| Package weight | 1178,4 g |
| Inner diameter | 47.625 mm |
| Outer diameter | 90 mm |
| Width | 40.132 mm |
| Bearing Clearance | cn |
Show UNSPSC/ECL@SS
£ 220.48 excl. VAT
/ Each
£ 264.58 incl. VAT
Usually arrives within 14 working days
