Tapered roller bearing Timken 34478B, Outer diameter: 121.442 mm | Inner diameter: 76.2 mm | Width: 17.463 mm

Tapered Roller Bearing Flanged Cup

See technical information

References

Timken:34478B
Rubix:397A7891
Manufacturer :100044129
EAN:0053893269313
brand logo
brand logo
brand logo
brand logo
brand logo
brand logo
brand logo

Technical specifications

Inner diameter76.2 mm
Outer diameter121.442 mm
Width17.463 mm
See all Specifications

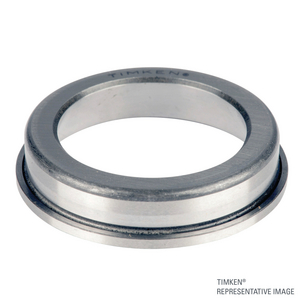

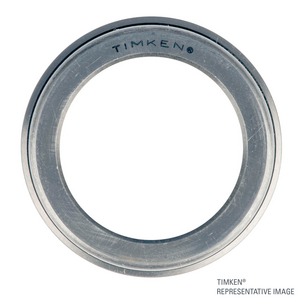

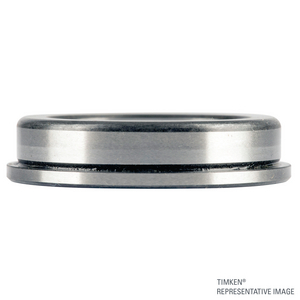

Product details : TIMKEN 34478B-20024 TAPERED ROLLER BEARING FLANGED CUP

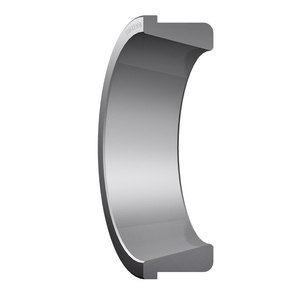

TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

Strengths

Cup is backed against flange face to allow housing to be through-bored. Accurate alignment of housing bores. Reduced machining costs.

Applications

Machine tool spindles; Gear reduction units; Automotive transaxles; Transmissions

Technical specifications

Attributes
Logistics dimensions (L x W x H)17,526x121,412x121,412 mm
Logistic Weight346 g
Packaged dimensions (D x W x H)133,858x133,858x34,544 mm
Package weight345,6 g
Inner diameter76.2 mm
Outer diameter121.442 mm
Width17.463 mm
Bearing Clearancecn
Weight0.99 kg
Series34000
Total bearing width11.908 mm
Basic static load, radial - C0r136000 N
Basic dynamic load, radial - Cr26500 N
£ 176.83 excl. VAT
/ Each
£ 212.20 incl. VAT
  • Usually arrives within 14 working days
