Tapered roller bearing Timken 31324XM-90KM1, Outer diameter: 260 mm | Inner diameter: 120 mm | Width: 68 mm
Tapered Roller Bearing
References
timken:31324XM-90KM1
rubix:397A4386
ean:0053893776163
Technical specifications
| Inner diameter | 120 mm |
|---|---|
| Outer diameter | 260 mm |
| Width | 68 mm |

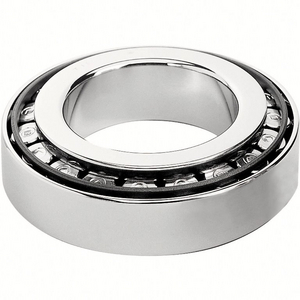

Product details : TIMKEN 31324XM-90KM1 TAPERED ROLLER BEARING
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
Strengths
Single cone and cup. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available
Applications
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 68x260x260 mm |
|---|---|
| Logistic Weight | 15377 g |
| Packaged dimensions (D x W x H) | 273,05x79,502x273,05 mm |
| Inner diameter | 120 mm |
| Outer diameter | 260 mm |
| Width | 68 mm |
| Bearing Clearance | cn |
Show UNSPSC/ECL@SS
£ 760.75 excl. VAT
/ Each
£ 912.90 incl. VAT
Usually arrives within 14 working days
