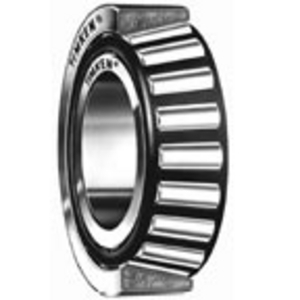

Tapered roller bearing Timken 2559/2523B, Outer diameter: 73.711 mm | Inner diameter: 30.163 mm | Width: 25.357 mm

Tapered Roller Bearing

See technical informationSee documents

References

Timken:2559/2523B
Rubix:397A7945
EAN:0013992334145
brand logo

Technical specifications

Inner diameter30.163 mm
Outer diameter73.711 mm
Width25.357 mm
See all Specifications

Documents

Product details : TIMKEN 2559-99401 TAPERED ROLLER BEARING WITH FLANGE

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings

Technical specifications

Attributes
Inner diameter30.163 mm
Outer diameter73.711 mm
Width25.357 mm
Bearing Clearancecn
Weight0.48 kg
Series2500
Materialstamped steel (cage)
Cagesteel
Total bearing width8.733 mm
Basic static load, radial - C0r94400 N
Basic dynamic load, radial - Cr83700 N
£ 238.69 excl. VAT
/ Each
£ 286.43 incl. VAT
  • Usually arrives within 14 working days
