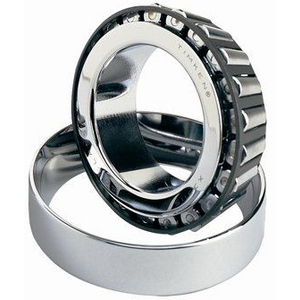

TIMKEN 3780-99401 TAPERED ROLLER BEARING

Tapered roller bearing Timken 3780/3720, Outer diameter: 93.264 mm | Inner diameter: 50.8 mm | Width: 30.163 mm

Tapered Roller Bearings

See technical information
References
Timken:3780/3720
Rubix:105A4807
Manufacturer :100147285
EAN:0053893664040
Tapered Roller Bearing - 3780-99401
Tapered Roller Bearing - 3780-99401
Tapered Roller Bearing - 3780-99401
Technical specifications
Inner diameter50.8 mm
Outer diameter93.264 mm
Width30.163 mm
See all Specifications

Product details : TIMKEN 3780-99401 TAPERED ROLLER BEARING

Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.

Strengths

Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.

Applications

Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels

Technical specifications

Attributes
Logistics dimensions (L x W x H)101x101x45 mm
Logistic Weight860 g
Packaged dimensions (D x W x H)101x101x45 mm
Package weight860 g
Inner diameter50.8 mm
Outer diameter93.264 mm
Width30.163 mm
Weight0.8 kg
Series3700
Materialbearing steel
Cagesteel
Total bearing width30.163 mm
Standardansi/abma standard 19.2 (referenced by timken for inch tapered roller bearing part-numbering system); iso 355 (dimensional plan / part numbering for metric tapered roller bearings)
Basic static load, radial - C0r153000 N
Basic dynamic load, radial - Cr122000 N
Show UNSPSC/ECL@SS
£ 63.53 excl. VAT
/ Each
£ 76.24 incl. VAT
  • Delivery usually within ( 7 ) days
