Tapered roller bearing Timken 71457TD, Inner diameter: 115.888 mm
Tapered Roller Double Row Cone
References
timken:71457TD
rubix:397A7584
manufacturer :100025800
ean:0053893384184
Technical specifications
| Inner diameter | 115.888 mm |
|---|---|
| Bearing Clearance | cn |

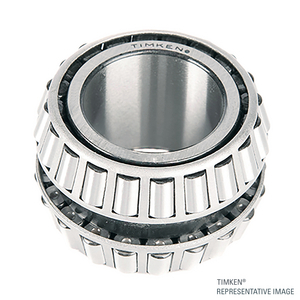

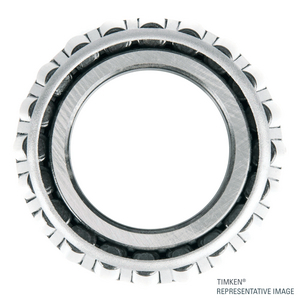

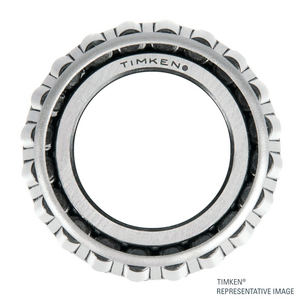

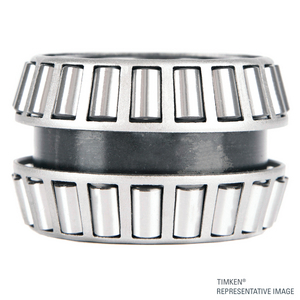

Product details : TIMKEN 71457TD-20000 TAPERED ROLLER BEARING DOUBLE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Strengths
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Applications
Gear reduction units; Calendar rolls; Industrial machinery
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 111,252x150,368x150,368 mm |
|---|---|
| Logistic Weight | 8016 g |
| Packaged dimensions (D x W x H) | 130,302x196,85x196,85 mm |
| Package weight | 8015,9 g |
| Inner diameter | 115.888 mm |
| Bearing Clearance | cn |
Show UNSPSC/ECL@SS
£ 1,182.23 excl. VAT
/ Each
£ 1,418.68 incl. VAT
Usually arrives within 14 working days
