TSUBAKI 5003000500 TFS-50 CAM CLUTCH

TSUBAKI 5003000500 TFS-50 CAM CLUTCH

TFS-45 CAM CLUTCH

See technical informationSee documents
References
Tsubaki:TFS50
Rubix:267A0302
Manufacturer :5003000500
EAN:8718472212426

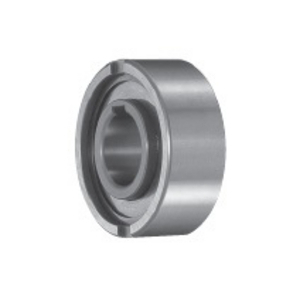

TSUBAKI FREEWHEEL CLUTCH TFS 50
TSUBAKI FREEWHEEL CLUTCH TFS 50
TSUBAKI FREEWHEEL CLUTCH TFS 50
Technical specifications
Inner diameter50 mm
Outer diameter110 mm
Width40 mm
See all Specifications
Documents

Product details : TSUBAKI 5003000500 TFS-50 CAM CLUTCH

Tsubaki TFS Series clutches are designed for press fit installation. Outside dimensions are the same as 63** ball bearings. TFS Clutches have two vertical key ways on the outer races. The usage of bearing support is compulsory.

Technical specifications

Attributes
Logistic Weight1858 g
Inner diameter50 mm
Outer diameter110 mm
Width40 mm
Seriestfs
Weight1858 kg
Reference speed1000 rpm
Total bearing width40 mm
Auth. torque1124 N.m
Standarddin 6885. 3
Show UNSPSC/ECL@SS
£ 372.52 excl. VAT
/ Each
£ 447.02 incl. VAT
  • Usually arrives within 14 working days
