TIMKEN PB 1/2 TWO PIECE ZINC-PLATED STEEL HOUSING

2-piece separable zinc-plated steel housing with insert bearing and locking collar

References

Timken:PB 1/2

Rubix:397A9275

EAN:0087796056220

Inner diameter	12.7 mm
Fixation centre-to-centre distance	81 mm
Shaft Height	22.2 mm

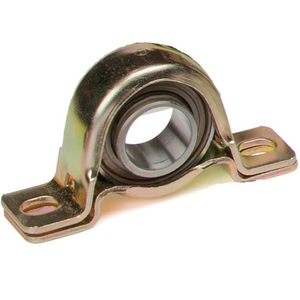

Pillow block bearing unit with pressed steel housing, clamping bearing with eccentric clamping ring, P-type seal.

Pillow block ball bearing unit Timken PB 1/2 (Fafnir) for 1/2" shaft, 2-bolt mounting and eccentric locking. Permanently prelubricated.

Attributes

Inner diameter	12.7 mm
Fixation centre-to-centre distance	81 mm
Shaft Height	22.2 mm
Material	zinc-plated steel (two-piece)
Total bearing width	22.1 mm
Outer diameter	18.2 mm
Clamping	12.7 mm
Diameter of fixation holes	8.7 mm
Mounting typ	2-bolt pillow block housing (pillow block) with eccentric locking (fafnir pb 1/2, inch)
Height	44.4 mm
Length	92.1 mm
Sealing	shroud seal (schutzmanschettendichtung)
Lubrication	permanently prelubricated (permanently prelubricated); re-lubrication via grease nipple possible (for 1/2 units: 1/4-28).
Series	pb
Weight	0.2 kg
Number of holes	2
Basic static load, radial - C0r	4700 N
Basic dynamic load, radial - Cr	10700 N
Width	25.4 mm
