Angular contact ball bearing FAG 3309-DA, Outer diameter: 100 mm | Inner diameter: 45 mm | Width: 39.7 mm

Angular contact ball bearing

See technical information

References

FAG:3309-DA
Rubix:182A9092
Manufacturer :0190576790000
EAN:4012801271189
brand logo

Technical specifications

Inner diameter45 mm
Outer diameter100 mm
Width39.7 mm
See all Specifications

Product details : FAG 3309-DA DOUBLE ROW ANGULAR CONTACT BALL BEARING

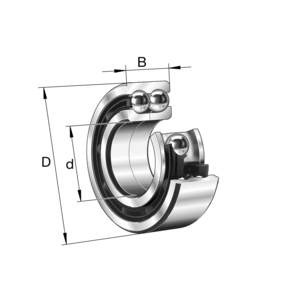

Angular contact ball bearing 33..-DA, double row, split inner ring, steel sheet metal cage

Technical specifications

Attributes
Logistic Weight1550 g
Inner diameter45 mm
Outer diameter100 mm
Width39.7 mm
Bearing Clearancecn
Sealingopen
Series33..-da
Reference speed5800 rpm
Limit speed7500 rpm
Basic static load, radial - C0r64000 N
Basic dynamic load, radial - Cr71000 N
£ 237.03 excl. VAT
/ Each
£ 284.44 incl. VAT
  • Usually arrives within 14 working days
