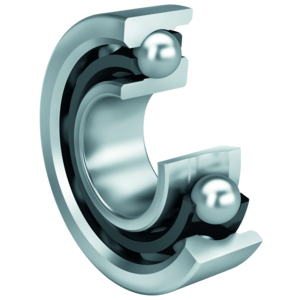

Angular contact ball bearing FAG 7308-B-XL-TVP-UB, Outer diameter: 90 mm | Inner diameter: 40 mm | Width: 23 mm

Angular contact ball bearing

See technical information

References

FAG:7308-B-XL-TVP-UB
Rubix:274A7133
Manufacturer :0882844250000
EAN:4054372498404
brand logo

Technical specifications

Inner diameter40 mm
Outer diameter90 mm
Width23 mm
See all Specifications

Product details : FAG 7308-B-XL-TVP-UB ANGULAR CONTACT BALL BEARING

Angular contact ball bearing 73..-B-XL-TVP, single row, X-life, plastic cage
Angular contact ball bearing 73..-B-XL-TVP, single row, X-life, plastic cage

Technical specifications

Attributes
Inner diameter40 mm
Outer diameter90 mm
Width23 mm
Sealingopen
Series73..-b-xl-tvp
Cagepolyamide
Weight0.61 kg
Reference speed7100 rpm
Limit speed10400 rpm
Angle40 °
Precisionp6 (abec 3 / iso class 6)
Basic static load, radial - C0r34500 N
Basic dynamic load, radial - Cr57000 N
£ 36.56 excl. VAT
/ Each
£ 43.87 incl. VAT
  • Usually arrives within 14 working days
