SKF F4BESS 108-CPSS-DFH BALL BEARING UNIT - FOOD LINE


Ball Bearing Unit - Food Line

References
skf:F4BESS 108-CPSS-DFH
rubix:237A3745
ean:07316579306935
brand logo
brand logo
Technical specifications
Inner diameter38.1 mm
Width38.9 mm
Fixation centre-to-centre distance83 mm
See all Specifications

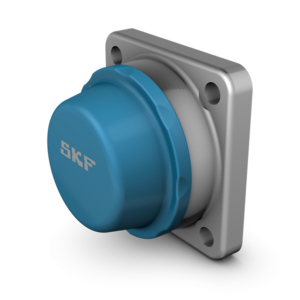

Product details : SKF F4BESS 108-CPSS-DFH BALL BEARING UNIT - FOOD LINE


These square flanged ball bearing units are designed especially for the food and beverage industries. They consist of an insert bearing, with a narrow inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a stainless steel housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Strengths

- Chemical resistant
- Lightweight
- Strong
- Pre-lubricated for life with a non-toxic food grade grease
- Designed for hightemperatures and speeds

Applications

For food and beverage applications

Technical specifications


Attributes
Inner diameter38.1 mm
Width38.9 mm
Fixation centre-to-centre distance83 mm
MaterialStainless steel
Total bearing width40.7 mm
Number of holes4
Basic static load, radial - C0r19000 N
Basic dynamic load, radial - Cr24700 N
Show UNSPSC/ECL@SS
£ 213.20 excl. VAT
/ Each
£ 255.84 incl. VAT
  • Usually arrives within 14 working days
