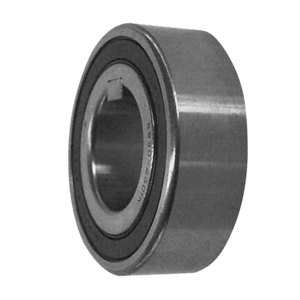

TSUBAKI 5015035021 BB35-2GD 1K-K CAM CLUTCH
BB15-2GD CAM CLUTCH
References
tsubaki:BB35-2GD-1K-K
rubix:267A0357
manufacturer :5015035021
ean:8718472214727
Technical specifications
| Inner diameter | 35 mm |
|---|---|
| Outer diameter | 72 mm |
| Width | 22 mm |
Product details : TSUBAKI 5015035021 BB35-2GD 1K-K CAM CLUTCH
Tsubaki BB Series clutches have 62** ball bearing characteristics and dimensions. This provides easy handling and installation. Ideal for general applicationsin the light duty industry.
Technical specifications
Attributes
| Logistic Weight | 420 g |
|---|---|
| Inner diameter | 35 mm |
| Outer diameter | 72 mm |
| Width | 22 mm |
| Series | BB |
| Weight | 0.42 kg |
| Reference speed | 1800 rpm |
| Total bearing width | 22 mm |
| Auth. torque | 173 N.m |
| Standard | DIN 6885. 3 |
| Basic static load, radial - C0r | 9700 N |
| Basic dynamic load, radial - Cr | 13500 N |
Show UNSPSC/ECL@SS
£ 81.77 excl. VAT
/ Each
£ 98.12 incl. VAT
Usually arrives within 14 working days
