TSUBAKI 5015030020 BB30-2GD CAM CLUTCH
BB15-2GD CAM CLUTCH
References
tsubaki:BB30-2GD
rubix:267A0355
manufacturer :5015030020
ean:0096223526885
Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Outer diameter | 62 mm |
| Width | 21 mm |

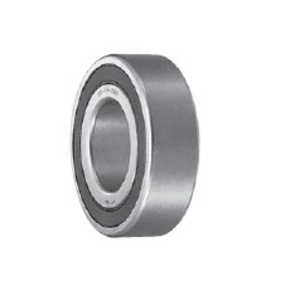

Product details : TSUBAKI 5015030020 BB30-2GD CAM CLUTCH
Tsubaki BB Series clutches have 62** ball bearing characteristics and dimensions. This provides easy handling and installation. Ideal for general applicationsin the light duty industry.
Technical specifications
Attributes
| Logistic Weight | 307 g |
|---|---|
| Inner diameter | 30 mm |
| Outer diameter | 62 mm |
| Width | 21 mm |
| Series | BB |
| Weight | 0.307 kg |
| Reference speed | 2000 rpm |
| Total bearing width | 21 mm |
| Auth. torque | 140 N.m |
| Standard | DIN 6885. 3 |
| Basic static load, radial - C0r | 7900 N |
| Basic dynamic load, radial - Cr | 11900 N |
Show UNSPSC/ECL@SS
£ 60.08 excl. VAT
/ Each
£ 72.10 incl. VAT
Usually arrives within 14 working days
