References
Gühring:534 25.000
Rubix:285A8136
Manufacturer :9005340250000
EAN:4031093159036
Technical specifications
| Drilling diameter | 25 mm |
|---|---|
| Total length | 281 mm |
| Length of cut | 160 mm |
Product details : GUHRING 00534 025.000 CORE DRILLS
Design: HSS, DIN 343, type N.
Profile grinding, steam tempered surface, right cutting.
Normal angle of rake, normal core thickness and without core gradient.
Application: For drilling out pre-drilled, pre-cast or pre-punched holes. The sturdy construction and 3 blades means that alignment inaccuracies and runouts in pre-drilled holes are corrected. Furthermore, the drill wall surface is improved so that a reamer can be subsequently used for perfect final reaming. Please pay attention to the column " smallest Ø of pre-drilled hole" .
Note: The cut diameter must be smaller than the hole to be drilled out.
Further dimensions or HSS-E designs or VHM/HM assembly or long flute counter bores according to DIN 1864 available on request.
Profile grinding, steam tempered surface, right cutting.
Normal angle of rake, normal core thickness and without core gradient.
Application: For drilling out pre-drilled, pre-cast or pre-punched holes. The sturdy construction and 3 blades means that alignment inaccuracies and runouts in pre-drilled holes are corrected. Furthermore, the drill wall surface is improved so that a reamer can be subsequently used for perfect final reaming. Please pay attention to the column " smallest Ø of pre-drilled hole" .
Note: The cut diameter must be smaller than the hole to be drilled out.
Further dimensions or HSS-E designs or VHM/HM assembly or long flute counter bores according to DIN 1864 available on request.
Core drill with Morse taper shank
Design: HSS, DIN 343, type N.
Profile grinding, steam tempered surface, right cutting.
Normal angle of rake, normal core thickness and without core gradient.
Application: For drilling out pre-drilled, pre-cast or pre-punched holes. The sturdy construction and 3 blades means that alignment inaccuracies and runouts in pre-drilled holes are corrected. In addition, the drill wall surface is so far improved that can then be thoroughly finished with a reamer. Please pay attention to the column "smallest Ø of pre-drilled hole".
Note: The cut diameter must be smaller than the hole to be drilled out.
Further dimensions or HSS-E versions or solid carbide/carbide components or long core drills according to DIN 1864 available on request.
Design: HSS, DIN 343, type N.
Profile grinding, steam tempered surface, right cutting.
Normal angle of rake, normal core thickness and without core gradient.
Application: For drilling out pre-drilled, pre-cast or pre-punched holes. The sturdy construction and 3 blades means that alignment inaccuracies and runouts in pre-drilled holes are corrected. In addition, the drill wall surface is so far improved that can then be thoroughly finished with a reamer. Please pay attention to the column "smallest Ø of pre-drilled hole".
Note: The cut diameter must be smaller than the hole to be drilled out.
Further dimensions or HSS-E versions or solid carbide/carbide components or long core drills according to DIN 1864 available on request.
Technical specifications
Attributes
| Drilling diameter | 25 mm |
|---|---|
| Total length | 281 mm |
| Length of cut | 160 mm |

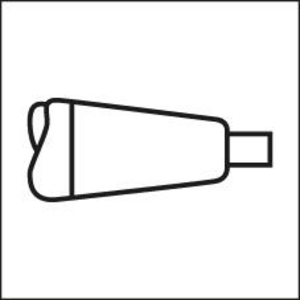

| Shank type | tapered |
| Coating | steam treatment (steam oxide) |
| Internal cooling | no |
| Taper shank | cm3 |
| Body material | hss |
| Machining material | steels (including high-alloy), stainless steels, cast irons (gray/spheroidal/malleable), aluminum and other non-ferrous metals; for enlarging/reworking pre-drilled, pre-cast or pre-punched holes. |

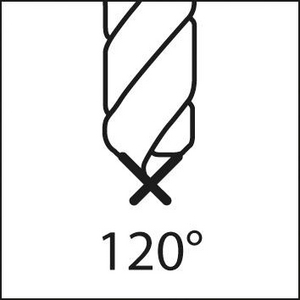

| Tip angle | 120 ° |
Show UNSPSC/ECL@SS
£ 102.51 excl. VAT
/ Each
£ 123.01 incl. VAT
- Usually arrives within 14 working days
