SKF TRACK ROLLER BEARING KRV 90 PP
Cam Follower (Stud-type Track Roller)
References
skf:KRV 90 PPA
rubix:101A2743
manufacturer :141619
ean:7316571620862
Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Width | 100 mm |
| Sealing | Open |
Product details : SKF TRACK ROLLER BEARING KRV 90 PP

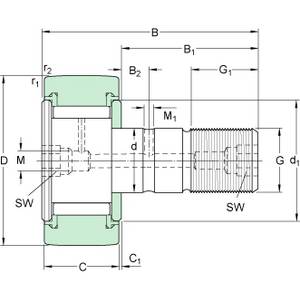

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.
Strengths
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 100x90x90 mm |
|---|---|
| Logistic Weight | 2200,4 g |
| Inner diameter | 30 mm |
| Width | 100 mm |
| Sealing | Open |
| Bearing Clearance | CN |
| Series | KRV |
| Material | Bearing steel |
| Outer diameter | 90 mm |
Show UNSPSC/ECL@SS
£ 203.56 excl. VAT
/ Each
£ 244.27 incl. VAT
Usually arrives within 14 working days
