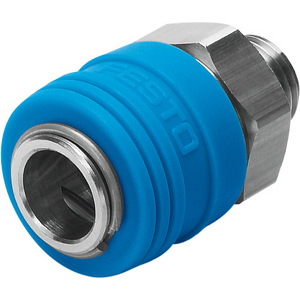

FESTO 531694 COUPLING SOCKET KD4-1/4-A-R
Coupling Socket
References
festo:KD4-1/4-A-R
rubix:123A3107
manufacturer :531694
ean:4052568047962
Technical specifications
| Connection 1 | G 1/4 |
|---|---|
| Material | Nickel-Plated Brass (Housing);Polypropylene (Releasing Sleeve) |
Product details : FESTO 531694 COUPLING SOCKET KD4-1/4-A-R
Quick coupling socket KD4-1/4-A-R Self-closing with non-return valve Nominal size=8 mm, Operating pressure complete temperature range=-0,95 - 12 bar, Standard nominal flow rate=765 l/min, Operating medium=Compressed Air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 20x15x15 mm |
|---|---|
| Logistic Weight | 59,9 g |
| Connection 1 | G 1/4 |
| Material | Nickel-Plated Brass (Housing);Polypropylene (Releasing Sleeve) |
| Profile | KD4 |
| Max. temperature | 80 °C |
| Min. temperature | -10 °C |
Show UNSPSC/ECL@SS
£ 21.33 excl. VAT
/ Each
£ 25.60 incl. VAT
Delivery usually within ( 6 ) days
