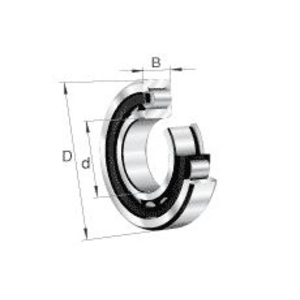

FAG NJ1024-XL-M1 CYLINDRICAL ROLLER BEARING

This single-row cylindrical roller bearing is designed to accommodate high radial loads as well as axial forces in one direction. Its technical design allows for easy assembly and flexible integration into a wide range of machine and plant concepts.

Explanation:
• NJ: Single-row bearing with two ribs on the outer ring and one rib on the inner ring for axial guidance in one direction
• XL: X-life quality for extended service life through higher dynamic load rating and optimized surfaces
• M1: Two-piece brass cage, roller-guided, for high stability and improved heat dissipation

Features:
This cylindrical roller bearing from FAG is characterized by its ability to carry high radial loads while simultaneously guiding axial forces in one direction. The internal geometry ensures precise axial positioning, while free axial displacement is possible in the opposite direction. The separable design significantly simplifies mounting and dismounting operations. The inner ring can be mounted or replaced on the shaft independently of the other components, while the outer ring assembly remains in the housing during maintenance. This facilitates maintenance work and reduces downtime. The two-piece brass cage increases mechanical load capacity and supports efficient heat management. The X-life quality is based on optimized and uniform contact surfaces, which improve load distribution, reduce friction, and minimize wear and noise generation. By optionally using an HJ-Bordring the bearing can be executed as a fixed bearing. This provides high flexibility for adapting to the requirements of the respective application.

Maintenance:
The reliable function of this bearing requires lubrication matched to the operating conditions. To minimize friction and dissipate generated heat effectively, a suitable grease or oil should be used in sufficient quantity. Regular checks of vibration and running noise allow early detection of possible damage. An unusual rise in temperature may indicate lubrication problems or misalignment. Surfaces should always be kept clean to prevent the ingress of contaminants. For this open bearing, particular attention must be paid to protection against dust and particles. Cleaning operations should be carried out only with suitable agents that do not impair the contact surfaces.

Strengths:
• Facilitates maintenance through the separable design, thereby shortening downtime and intervention times
• Ensures precise axial guidance in one direction while allowing axial freedom of movement in the opposite direction
• Extends service life through X-life quality and optimized load distribution
• Reduces wear and noise generation through optimized contact surfaces
• Supports efficient heat management thanks to a robust brass cage for demanding operating conditions
• Offers high integration flexibility by allowing execution as a fixed bearing using an additional rib

Applications:
This bearing type is suitable for mechanical systems that are exposed to high radial loads and simultaneously require partial axial guidance. It is frequently used in industrial gearboxes, where it ensures shaft guidance and reliably absorbs forces generated by gearings. Mechanical drive systems are also typical application areas, particularly where reliable axial guidance in one direction is required. In machine shafts the bearing allows compensation of axial thermal expansion while ensuring precise positioning of components. Further application areas include production equipment, machine tools and conveyor systems where high speeds and heavy loads occur and where maintenance friendliness and long service life are required.
