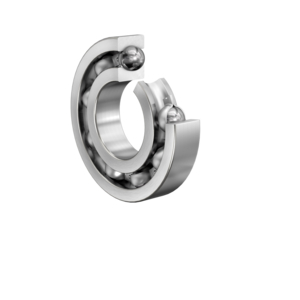

Deep groove ball bearing FAG 61813-Y, Outer diameter: 85 mm | Width: 10 mm | Inner diameter: 65 mm
Deep groove ball bearing
References
fag:61813-Y
rubix:212A3368
manufacturer :0797506050000
ean:4047643334969
Technical specifications
| Inner diameter | 65 mm |
|---|---|
| Outer diameter | 85 mm |
| Width | 10 mm |
Product details : FAG 61813-Y BALL BEARING
Deep groove ball bearing 618, single row, steel sheet metal cage
Deep groove ball bearing 618..-Y, single row, brass sheet metal cage
Strengths
•High and very high speeds are required
The bearing arrangement must be operated with very low friction
Very low running noise is required, without reducing the speed, load carrying capacity and operating life of the bearing (Generation C)
High demands are made on the sealing of the bearing, without increasing heat generation or limiting the speed (Generation C)
The bearing position is to be designed particularly economically
The bearing arrangement must be operated with very low friction
Very low running noise is required, without reducing the speed, load carrying capacity and operating life of the bearing (Generation C)
High demands are made on the sealing of the bearing, without increasing heat generation or limiting the speed (Generation C)
The bearing position is to be designed particularly economically
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 10x85x85 mm |
|---|---|
| Logistic Weight | 136 g |
| Inner diameter | 65 mm |
| Outer diameter | 85 mm |
| Width | 10 mm |
| Sealing | Open |
| Bearing Clearance | CN |
| Series | 618..-Y |
| Material | Steel |
| Cage | Other |
| Reference speed | 5700 rpm |
| Limit speed | 14700 rpm |
| Basic static load, radial - C0r | 12000 N |
| Basic dynamic load, radial - Cr | 13000 N |
Show UNSPSC/ECL@SS
£ 40.47 excl. VAT
/ Each
£ 48.56 incl. VAT
Usually arrives within 14 working days
