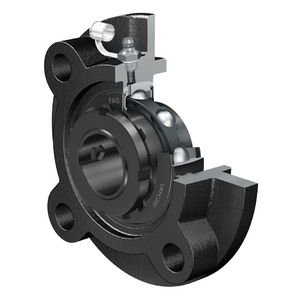

FAG UKFC212-J7 FLANGED HOUSING UNIT UKFC

Flanged housing unit

References

Superseded Ref:-T-UKFC212

FAG:UKFC212-J7

Rubix:238A1760

Manufacturer :0823456000000

EAN:4054366901866

Inner diameter	55 mm
Width	195 mm
Fixation centre-to-centre distance	160 mm

Flanged housing unit UKFC

Attributes

Logistic Weight	4960 g
Inner diameter	55 mm
Width	195 mm
Fixation centre-to-centre distance	160 mm
Material	grey cast iron
Height	195 mm
Length	195 mm
Series	ukfc
Total bearing width	51.2 mm
Diameter of fixation holes	19 mm
Number of holes	4
Basic static load, radial - C0r	36000 N
Basic dynamic load, radial - Cr	56000 N
Outer diameter	62 mm
Weight	4.95 kg
Mounting typ	four-bolt round flange with adapter sleeve

Show UNSPSC/ECL@SS

£ 89.39 ^{excl. VAT}

/ Each

£ 107.27 ^{incl. VAT}
