INA RCJT40-XL-N-FA125 HOUSING UNITS RCJT..-FA125 TWO-BOLT FLANGED HOUS

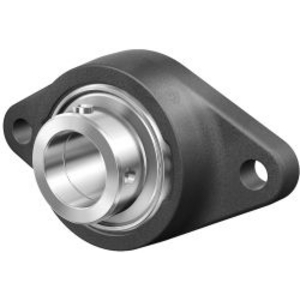

Flanged housing unit
References
ina:RCJT40-XL-N-FA125
rubix:238A1710
manufacturer :0096286810000
ean:4012802810004
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Width | 105 mm |
| Fixation centre-to-centre distance | 143.5 mm |
Product details : INA RCJT40-XL-N-FA125 HOUSING UNITS RCJT..-FA125 TWO-BOLT FLANGED HOUS
Housing units RCJT..-FA125, two-bolt flanged housing units, cast iron, eccentric locking collar, R seals, with anti-corrosion protection
Technical specifications
Attributes
| Inner diameter | 40 mm |
|---|---|
| Width | 105 mm |
| Fixation centre-to-centre distance | 143.5 mm |
| Material | Cast Iron |
| Height | 172 mm |
| Length | 172 mm |
| Series | RCJT..-XL-N-FA125 |
| Total bearing width | 59.1 mm |
| Diameter of fixation holes | 14 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 19800 N |
| Basic dynamic load, radial - Cr | 32500 N |
| Outer diameter | 172 mm |
Show UNSPSC/ECL@SS
£ 63.23 excl. VAT
/ Each
£ 75.88 incl. VAT
Usually arrives within 14 working days
