SKF SPHERICAL ROLLER BEARING 23264CCK/C3W33
Spherical roller bearing SKF
References
skf:23264 CCK/C3W33
rubix:104A5411
manufacturer :153391
ean:7316571739311
Technical specifications
| Inner diameter | 320 mm |
|---|---|
| Outer diameter | 580 mm |
| Width | 208 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23264CCK/C3W33

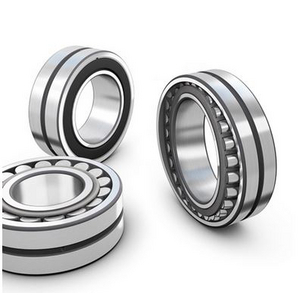

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 208x580x580 mm |
|---|---|
| Logistic Weight | 230300 g |
| Inner diameter | 320 mm |
| Outer diameter | 580 mm |
| Width | 208 mm |
| Bearing Clearance | c3 |
| Series | 232c |
| Cage | steel |
| Reference speed | 700 rpm |
| Limit speed | 950 rpm |
| Basic static load, radial - C0r | 6700 N |
| Basic dynamic load, radial - Cr | 4607 N |
| Sealing | open |
Show UNSPSC/ECL@SS
£ 8,570.54 excl. VAT
/ Each
£ 10,284.65 incl. VAT
Usually arrives within 14 working days
