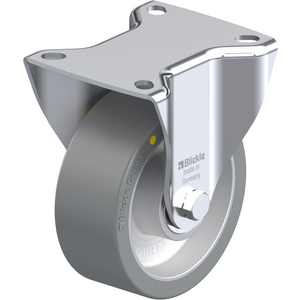

BLICKLE B-ALTH-100K-AS CASTOR WHEEL ASSEMBLY
Heavy duty drive wheel, with hub keyway, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
References
blickle:B-ALTH 100K-AS
rubix:201A9363
manufacturer :701797
ean:4047526701796
Technical specifications
| Load capacity | 250 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 40 mm |
Product details : BLICKLE B-ALTH-100K-AS CASTOR WHEEL ASSEMBLY
Tread:
- high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A
- low rolling resistance
- high abrasion resistance
- high cut and tear propagation resistance
- colour light brown, non-marking, non-staining
- excellent chemical connection with the wheel centre
- rugged grey cast iron
- axle bore and hub keyway in accordance with DIN 6885
- lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Technical specifications
Attributes
| Logistic Weight | 821 g |
|---|---|
| Load capacity | 250 kg |
| Wheel diameter | 100 mm |
| Wheel width | 40 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 125 mm |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Grey |
| Shore A Hardness | 92 Shore |
| Plate width | 85 mm |
| Plate length | 100 mm |
| 125 mm | |
| 40 mm |
Show UNSPSC/ECL@SS
£ 55.46 excl. VAT
/ Each
£ 66.55 incl. VAT
Usually arrives within 14 working days
