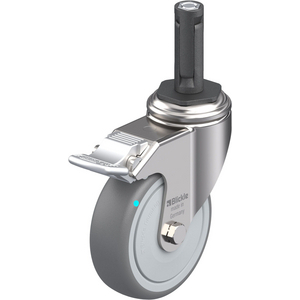

BLICKLE LKRXA-TPA101KD-11FIFK-EXR12 SWIVEL CASTOR S/S
Heavy duty welded steel swivel castor, heavy duty swivel head, with directional lock Heavy duty wheel made of compressed cast nylon
See technical informationReferences
Blickle:LKRXA-TPA 101KFD-11-FI-EXR12
Rubix:209A9666
Manufacturer :853166
EAN:4047526201968
Technical specifications
| Load capacity | 110 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
Product details : BLICKLE LKRXA-TPA101KD-11FIFK-EXR12 SWIVEL CASTOR S/S
Bracket: LS series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Wheel: GSPO series
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
Technical specifications
Attributes
| Logistic Weight | 1000 g |
|---|---|
| Load capacity | 110 kg |
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Wheel housing/rim material | polypropylene |
| Running sole/tire material | rubber |
| Min. temperature | -20 °C |
| Max. temperature | 60 °C |
| Running sole / tire colour | grey |
| Shore A Hardness | 85 Shore |
| 136 mm | |
| 32 mm |
