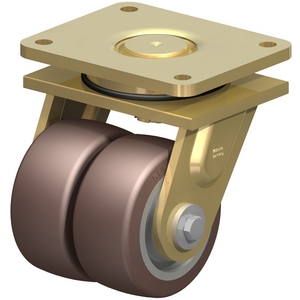

BLICKLE LSD-GB 128K 755017 CASTOR WHEEL
Heavy duty welded steel twin wheel swivel castor, heavy duty swivel head Heavy duty wheel, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
References
blickle:LSD-GB 128K
rubix:215A8214
manufacturer :755017
ean:4047526115289
Technical specifications
| Load capacity | 1500 kg |
|---|---|
| Wheel diameter | 125 mm |
Product details : BLICKLE LSD-GB 128K 755017 CASTOR WHEEL
Bracket: LSD series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Wheel: GB series
- tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Technical specifications
Attributes
| Logistic Weight | 11710 g |
|---|---|
| Load capacity | 1500 kg |
| Wheel diameter | 125 mm |
| Wheel housing/rim material | Cast Iron |
| Running sole/tire material | Polyurethane |
| Min. temperature | -30 °C |
| Max. temperature | 70 °C |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Brown |
| 185 mm | |
| 2x60 mm |
Show UNSPSC/ECL@SS
£ 417.34 excl. VAT
/ Each
£ 500.81 incl. VAT
Usually arrives within 14 working days
