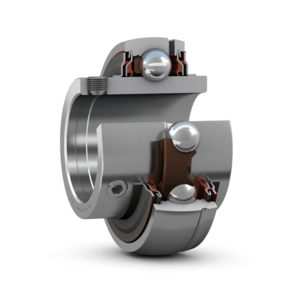

SKF YAR205-100-2RF/HV BALL BEARING UNIT AND INSERT FOOD LINE

Insert bearing with set screw SKF YAR 205-100-2RF/HV, Outer diameter: 52 mm | Inner diameter: 25.4 mm | Width: 34.1 mm

Insert Bearing

See technical information
References
SKF:YAR 205-100-2RF/HV
Rubix:236A7243
Manufacturer :78082
EAN:07316570130829
brand logo
Technical specifications
Inner diameter25.4 mm
Outer diameter52 mm
Width34.1 mm
See all Specifications

Product details : SKF YAR205-100-2RF/HV BALL BEARING UNIT AND INSERT FOOD LINE

Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Strengths

  • Designed for constant and alternating rotary movements
  • Quick and easy mounting on the shaft
  • Absorption of installation-related misalignments
  • Long service life
  • Reduced noise and vibration level

Technical specifications

Attributes
Logistic Weight185 g
Inner diameter25.4 mm
Outer diameter52 mm
Width34.1 mm
Sealingtwo rubber seals
Seriesyar
Limit speed4300 rpm
Basic static load, radial - C0r7800 N
Basic dynamic load, radial - Cr11900 N
Show UNSPSC/ECL@SS
£ 128.14 excl. VAT
/ Each
£ 153.77 incl. VAT
  • Delivery usually within ( 3 ) days
