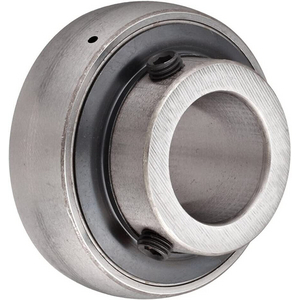

SKF YAR205-2F/VA201 BEARING INSERT

Insert bearing with set screw SKF YAR 205-2F/VA201, Outer diameter: 52 mm | Inner diameter: 25 mm | Width: 15 mm

Insert Bearing

See technical information
References
SKF:YAR 205-2F/VA201
Rubix:212A1113
EAN:7316579069946
brand logo
Technical specifications
Inner diameter25 mm
Outer diameter52 mm
Width15 mm
See all Specifications

Product details : SKF YAR205-2F/VA201 BEARING INSERT

Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 °C (660 °F). This makes these products very suitable for applications in kiln trucks, roller hearth furnaces, and bakeries, where there are both constant and alternating directions of rotation.

Strengths

  • Designed for constant and alternating rotary movements
  • Quick and easy mounting on the shaft
  • Absorption of installation-related misalignments
  • Long service life
  • Reduced noise and vibration level

Applications

Food and beverage industry

Technical specifications

Attributes
Inner diameter25 mm
Outer diameter52 mm
Width15 mm
Materialhigh temperature steel
Cagesteel
Total bearing width34.1 mm
Basic static load, radial - C0r7800 N
Basic dynamic load, radial - Cr14000 N
Show UNSPSC/ECL@SS
£ 106.25 excl. VAT
/ Each
£ 127.50 incl. VAT
  • Usually arrives within 14 working days
