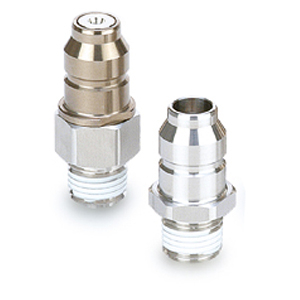

SMC KKA3P-01M-1 PLUG
KK S Coupler
References
smc:KKA3P-01M-1
rubix:133A7511
Technical specifications
| Connection 1 | R 1/8 |
|---|---|
| Material | 304 Stainless Steel (Stem, Rear Stem, Plug Valve, Plug Valve Spring);Special FKM (Valve O-Ring, Stem O-Ring) |
Product details : SMC KKA3P-01M-1 PLUG
S coupler with Plug and Socket, body material: Stainless steel 304
Seal material: Fluoropolymer (special FKM)
Threads, sizes: R, Rc, from 1/8 to 1 1/2
Operating temperature: -5 to 150 °C
Check valve built in to both Plug and Socket
Grease-free.
Seal material: Fluoropolymer (special FKM)
Threads, sizes: R, Rc, from 1/8 to 1 1/2
Operating temperature: -5 to 150 °C
Check valve built in to both Plug and Socket
Grease-free.
•Male thread.
•Body size: 1/8, 1/4, 1/2, 3/4, 1, 1 1/4.
•Applicable Port Size: R1/8, R1/4, R3/8, R1/2, R3/4, R1, R1 1/4, R1 1/2.
Body Size: 3 (1/8)
Port Size: R 1/8
Built-in Check Valve: 1 (w/o Check Valve)
•Body size: 1/8, 1/4, 1/2, 3/4, 1, 1 1/4.
•Applicable Port Size: R1/8, R1/4, R3/8, R1/2, R3/4, R1, R1 1/4, R1 1/2.
Body Size: 3 (1/8)
Port Size: R 1/8
Built-in Check Valve: 1 (w/o Check Valve)
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 12x29x14 mm |
|---|---|
| Logistic Weight | 9 g |
| Connection 1 | R 1/8 |
| Material | 304 Stainless Steel (Stem, Rear Stem, Plug Valve, Plug Valve Spring);Special FKM (Valve O-Ring, Stem O-Ring) |
| Profile | KKA3P |
| Max. temperature | 150 °C |
| Min. temperature | -5 °C |
