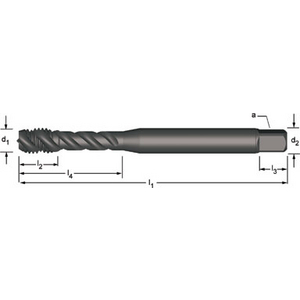

Drmr s/trum SP/FL XS1 BLUE EX01M39
M Machine Tap Spiral Flute 45°
References
dormer:EX01M39
rubix:2008277
ean:7320760137178
Technical specifications
| Threading diameter | 39 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 200 mm |
Product details : Drmr s/trum SP/FL XS1 BLUE EX01M39
HSS-E Machine tap for metric thread steam-tempered DIN 371 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Stainless steel and cast iron.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
Technical specifications
Attributes
| Threading diameter | 39 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 200 mm |
| Body material | HSS-E |
| Type | Metric blind bores |
| With cooling spray | No |
| Drilling diameter | 35 mm |
| Square drive adapter | 32 mm |
| Coating | Steam Tempered |
Show UNSPSC/ECL@SS
£ 330.00 excl. VAT
/ Each
£ 396.00 incl. VAT
Usually arrives within 14 working days
