DORMER A9768.5X240 DRILL 8.50 MM 5973235
Metal drills A976
References
dormer:A9768.5X240
rubix:404851
ean:7320760148662
Technical specifications

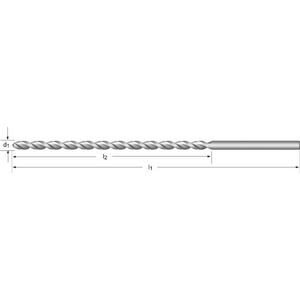

| Drilling diameter | 8.5 mm |
|---|---|
| Total length | 240 mm |
| Length of cut | 165 mm |
Product details : DORMER A9768.5X240 DRILL 8.50 MM 5973235
HSS-E Extra long spiral drill with cylindrical shaft DIN 1869/1 PFX 130° uncoated 15xD for steel <1620 N/mm ².
Applications
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• alloy steel hardened and tempered steel (> 350 HB >1200<1620 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• alloy steel hardened and tempered steel (> 350 HB >1200<1620 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 8.5 mm |
|---|---|
| Total length | 240 mm |
| Length of cut | 165 mm |
| Din standard | din 1869/1 |
| Ratio of diameter to length of drill hole | 15xd |
| Body material | hss |
| Sharpening | standard |
| Tip angle | 130 ° |
| Internal cooling | no |
| Tail diameter | 8.5 mm |
Show UNSPSC/ECL@SS
£ 77.70 excl. VAT
/ Each
£ 93.24 incl. VAT
Usually arrives within 14 working days
