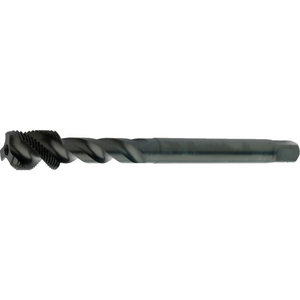

DORMER EX11M8X1.0 TAP M8 X 1.00 MM 5973667
MF Machine Tap Spiral Flute 45°
References
dormer:EX11M8X1.0
rubix:2019331
ean:7320760150009
Technical specifications
| Threading diameter | 8 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 90 mm |
Product details : DORMER EX11M8X1.0 TAP M8 X 1.00 MM 5973667
HSS-E Machine thread cutter for fine metric thread steam-tempered DIN 374 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Stainless steel and cast iron.
Strengths
Premium substrate with Steam Oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Applications
Machining steel soft steel (<120 HB <400 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
stainless machining steel (<250 HB <850 N/mm²)
stainless steel - austenitic (<320 HB <1100 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
stainless machining steel (<250 HB <850 N/mm²)
stainless steel - austenitic (<320 HB <1100 N/mm²)
Technical specifications
Attributes
| Threading diameter | 8 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 90 mm |
| Thread depth | 13 mm |
| Body material | HSS-E |
| Tolerance | 6H |
| Type | Metric blind bores |
| With cooling spray | No |
| Direction of threading | Right |
| Drilling diameter | 7 mm |
| Tail diameter | 6 mm |
| Square drive adapter | 4.9 mm |
| Coating | Steam Tempered |
Show UNSPSC/ECL@SS
£ 31.40 excl. VAT
/ Each
£ 37.68 incl. VAT
Usually arrives within 14 working days
