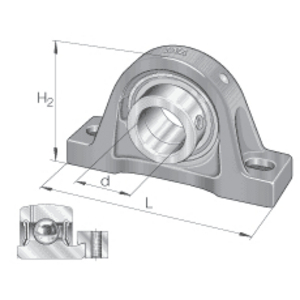

INA PASE35-XL-N-FA125 PASE35-N-FA125 BEARING & HOUSING
Plummer block housing unit
References
ina:PASE35-XL-N-FA125
rubix:231A1640
manufacturer :0096329300000
ean:4012802809749
Technical specifications
| Inner diameter | 35 mm |
|---|---|
| Fixation centre-to-centre distance | 126 mm |
| Shaft Height | 47.6 mm |
Product details : INA PASE35-XL-N-FA125 PASE35-N-FA125 BEARING & HOUSING
Plummer block housing units PASE..-FA125, cast iron housing, radial insert ball bearing with eccentric locking collar, P seals, with anti-corrosion protection
Technical specifications
Attributes
| Inner diameter | 35 mm |
|---|---|
| Fixation centre-to-centre distance | 126 mm |
| Shaft Height | 47.6 mm |
| Material | Cast Iron |
| Height | 93 mm |
| Length | 163 mm |
| Total bearing width | 45 mm |
| Series | PASE..-XL-N-FA125 |
| Number of holes | 2 |
| Basic static load, radial - C0r | 15300 N |
| Basic dynamic load, radial - Cr | 27500 N |
| Outer diameter | 163 mm |
| Width | 45 mm |
Show UNSPSC/ECL@SS
Usually arrives within 14 working days
