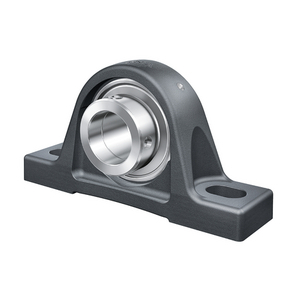

INA PASEY12-XL PLUMMER BLOCK HOUSING UNITS PASEY CAST IRON RAD
Plummer block housing unit
References
ina:PASEY12-XL
rubix:238A3750
manufacturer :0009492480000
ean:4012802802245
Technical specifications
| Inner diameter | 12 mm |
|---|---|
| Fixation centre-to-centre distance | 95 mm |
| Shaft Height | 30.2 mm |
Product details : INA PASEY12-XL PLUMMER BLOCK HOUSING UNITS PASEY CAST IRON RAD
Plummer block housing units PASEY, cast iron housing, radial insert ball bearing with grub screws in inner ring, P seals
Technical specifications
Attributes
| Inner diameter | 12 mm |
|---|---|
| Fixation centre-to-centre distance | 95 mm |
| Shaft Height | 30.2 mm |
| Material | Cast Iron |
| Height | 57 mm |
| Length | 125 mm |
| Total bearing width | 22 mm |
| Series | PASEY..-XL |
| Number of holes | 2 |
| Basic static load, radial - C0r | 4750 N |
| Basic dynamic load, radial - Cr | 10100 N |
| Outer diameter | 57 mm |
| Width | 30 mm |
Show UNSPSC/ECL@SS
£ 20.99 excl. VAT
/ Each
£ 25.19 incl. VAT
Usually arrives within 14 working days
