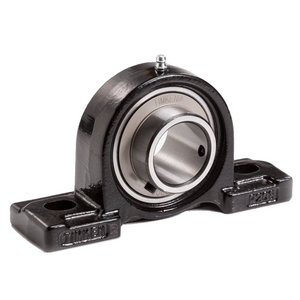

TIMKEN UCP218 PILLOW BLOCK
UCP 200 Pillow Block Mounted Bearings - Set Screw Locking
See technical informationSee documentsReferences
Timken:UCP218
Rubix:396A9462
EAN:0087796073487
Technical specifications
| Inner diameter | 90 mm |
|---|---|
| Fixation centre-to-centre distance | 262 mm |
| Shaft Height | 101.6 mm |
Documents
Product details : TIMKEN UCP218 PILLOW BLOCK
Timken innovations continue to keep the world in motion, including the invention of the wide inner ring bearing and the ball bearing housed unit. Timken continue that innovation by applying our extensive engineering knowledge of bearings, metallurgy, seals and end-user applications to deliver optimized performance from our housed unit product line.
Strengths
● Compact, one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UCP series Mounted Bearings feature the Timken set screw locking (UC) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for applications involving wet or dirty environments.
● Bolt-hole spacing and base-to-center height dimensions are interchangeable with competitive units.
● Housing designed for ease of bearing replacement.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UCP series Mounted Bearings feature the Timken set screw locking (UC) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for applications involving wet or dirty environments.
● Bolt-hole spacing and base-to-center height dimensions are interchangeable with competitive units.
● Housing designed for ease of bearing replacement.
Applications
● UCP pillow blocks are suggested for industrial applications where normal loads are encountered.
Technical specifications
Attributes
| Inner diameter | 90 mm |
|---|---|
| Fixation centre-to-centre distance | 262 mm |
| Shaft Height | 101.6 mm |
| Material | cast iron (iso 185 grade 200 / astm a48 grade no. 30) |
| Total bearing width | 88 mm |
| Outer diameter | 160 mm |
| Diameter of fixation holes | 27 mm |
| Mounting typ | two-bolt pillow block |
| Height | 198 mm |
| Length | 327 mm |
| Sealing | bonded nitrile rubber seal with steel flinger |
| Lubrication | prelubricated with lithium-based grease; relubricatable (grease fitting supplied) |
| Series | ucp 200 |
| Weight | 13.9 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 71500 N |
| Basic dynamic load, radial - Cr | 96100 N |
| Width | 96 mm |
Show UNSPSC/ECL@SS
£ 199.61 excl. VAT
/ Each
£ 239.53 incl. VAT
- Delivery usually within ( 7 ) days
