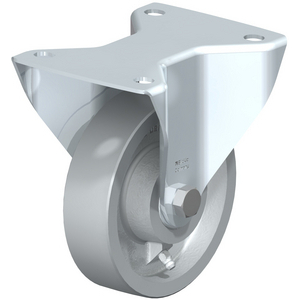

BLICKLE 754098 CASTOR STEEL SWIVEL 125MM
Pressed steel fixed castor, heavy duty design, with top plate fitting Cast iron wheel
References
blickle:BK-G 125K-3
rubix:265A3805
manufacturer :754098
ean:4047526079987
Technical specifications
| Load capacity | 350 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 35 mm |
Product details : BLICKLE 754098 CASTOR STEEL SWIVEL 125MM
Bracket: BK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
Wheel: G series
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
Technical specifications
Attributes
| Logistic Weight | 2297 g |
|---|---|
| Load capacity | 350 kg |
| Wheel diameter | 125 mm |
| Wheel width | 35 mm |
| Wheel housing/rim material | cast iron |
| Running sole/tire material | cast iron |
| Min. temperature | -20 °C |
| Max. temperature | 120 °C |
| Type of bearing | ball bearing |
| Running sole / tire colour | silver |
| 165 mm | |
| 35 mm |
Show UNSPSC/ECL@SS
£ 53.08 excl. VAT
/ Each
£ 63.70 incl. VAT
Usually arrives within 14 working days
