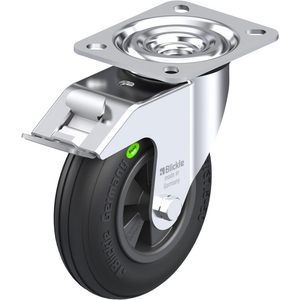

BLICKLE SWIVEL CASTOR L-VWPP-125G-FI
Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix' Wheel, with 'Blickle Soft' soft rubber tyre, with synthetic rim
References
blickle:L-VWPP 125G-FI
rubix:180A3482
manufacturer :612671
ean:4047526612672
Technical specifications
| Load capacity | 50 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 38 mm |
Product details : BLICKLE SWIVEL CASTOR L-VWPP-125G-FI
Bracket: L series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VWPP series
- tyre: soft rubber "Blickle Soft", hardness 50 Shore A, colour black (wheel Ø 260 mm with additional hard rubber core)
- rim: high-quality polypropylene, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- wheel Ø 260 mm with additional hard rubber core
- puncture-proof alternatives for pneumatic tyres
Technical specifications
Attributes
| Logistic Weight | 1043 g |
|---|---|
| Load capacity | 50 kg |
| Wheel diameter | 125 mm |
| Wheel width | 38 mm |
| Wheel housing/rim material | Polypropylene |
| Running sole/tire material | Rubber |
| Min. temperature | -20 °C |
| Max. temperature | 60 °C |
| Total height | 150 mm |
| Type of bearing | Plain bore |
| Running sole / tire colour | Black |
| Shore A Hardness | 50 Shore |
| Plate width | 85 mm |
| Plate length | 100 mm |
| 150 mm | |
| 37,5 mm |
Show UNSPSC/ECL@SS
£ 39.10 excl. VAT
/ Each
£ 46.92 incl. VAT
Usually arrives within 14 working days
