FESTO 549396 PRESSURE BOOSTER DPA-40-D

Pressure Booster

See technical informationSee documents

References

Festo:DPA-40-D
Rubix:118A7145
Manufacturer :549396
EAN:4052568007430

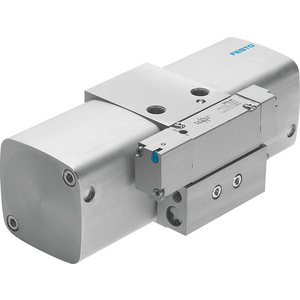

DPA-40-D Pressure booster

Technical specifications

Threading diameter (inch)g 1/4;g 1/8 ''
Volume flow rate300 l/min
See all Specifications

Documents

Product details : FESTO 549396 PRESSURE BOOSTER DPA-40-D

Pressure booster DPA-40-D for generating higher pressures. Piston diameter=40 mm, Assembly Position=Any, Design structure=Twin-piston pressure booster, Pressure gauge=G1/8" prepared, Output pressure 2=5 - 16 bar

Technical specifications

Attributes
Logistics dimensions (L x W x H)240x100x150 mm
Logistic Weight1636 g
Threading diameter (inch)g 1/4;g 1/8 ''
Volume flow rate300 l/min
Adjustable Output Pressureno
Max. service pressure16 bar
Connectionpneumatic connection (ports 1 & 2): g1/4; pneumatic connection (port 3): m7; pressure gauge/pressure display prepared for g1/8
Min. Operation temperature5 °C
Max. Operation temperature60 °C
Maximum Input Pressure8 bar
£ 743.70 excl. VAT
/ Each
£ 892.44 incl. VAT
