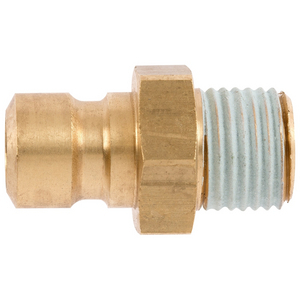

RECTUS 1/4 BSPT MALE PLUG 87SFAK13MXX

Parker's Quick Coupling Series 86/87/88 were especially developed for connecting coolant lines and injection molds. The countersunk plugs can easily be connected and disconnected because of the extended sleeve. The angular connections prevent kinks from forming in the hose.

This coupling series is available in single shut-off, double shut-off, straight-through versions and is also available with SAFE-LOCK™-technology. The shut-off couplings (with valve) are equipped with nickel plated sleeves for quick and accurate visual differentiation.

Markets:
- Industrial

Features/Benefits:
- SAFE-LOCK™-technology reliably prevents accidental uncoupling of the system under pressure
- Shut-off couplings are equipped with nickel plated sleeve for quick and accurate visual differentiation

Application Area:
- Mold cooling
- Cooling and tempering lines

Connection Thread Size (inch): 1/4
Connection Type: Male Thread - tapered
Diameter Nominal (dn): 6
Division: Low Pressure Connectors Europe Division
Hex Size: 16
Length (mm): 34
Materials Of Construction: Brass
Maximum Operating Pressure: 15
Maximum Operating Temperature: 200
Minimum Operating Temperature: -15
Outside Diameter: 13.5
Product Type: Plug
Valving: No
