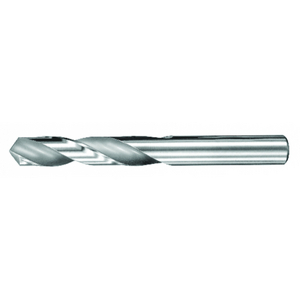

SGS SER 108M DRILL DIN 6539 62071 3MM
SGS Drill
References
sgs pro:62071
rubix:2553461
Technical specifications
| Drilling diameter | 3 mm |
|---|---|
| Total length | 46 mm |
| Length of cut | 12 mm |
Product details : SGS SER 108M DRILL DIN 6539 62071 3MM
Designed for effective drilling in a wide variety of materials and applications, this short rigid drill is an ideal compromise of performance and economy in shallow hole drilling. The point is a self centering point angle
Strengths
Short rigid drill
145° Self Centering Point
Effective in a wide range of materials
145° Self Centering Point
Effective in a wide range of materials
Applications
Machining aircraft and aerospace material
Nickel alloys
Stainless steel
Titanium
Cast iron and carbon steel
Nickel alloys
Stainless steel
Titanium
Cast iron and carbon steel
Technical specifications
Attributes
| Drilling diameter | 3 mm |
|---|---|
| Total length | 46 mm |
| Length of cut | 12 mm |
| Din standard | din 6539 |
| Coating | non coated |
| Tolerance | 0,000 to -0,010 |
| Direction of cutting | right |
| Ratio of diameter to length of drill hole | 3xd |
| Body material | carbide |
| Tip angle | 118 ° |
| Tail diameter | 3 mm |
Show UNSPSC/ECL@SS
£ 18.06 excl. VAT
/ Each
£ 21.67 incl. VAT
Usually arrives within 14 working days
