References
SNR:UCPH205
Rubix:206A1109
Manufacturer :UCPH.205
EAN:3413529505227
Technical specifications
| Inner diameter | 25 mm |
|---|---|
| Fixation centre-to-centre distance | 105 mm |
| Shaft Height | 80 mm |
Documents

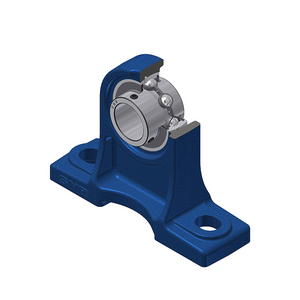

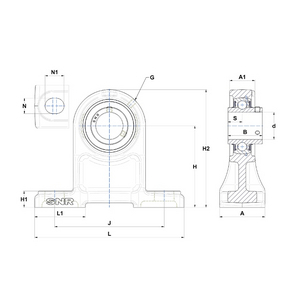

Product details : SNR UCPH205 BEARING UNIT
grey cast housing, radial insert ball bearing with socket set screws,seal with slinger
Technical specifications
Attributes
| Inner diameter | 25 mm |
|---|---|
| Fixation centre-to-centre distance | 105 mm |
| Shaft Height | 80 mm |
| Material | cast iron |
| Total bearing width | 50 mm |
| Outer diameter | 52 mm |
| Diameter of fixation holes | 13 mm |
| Height | 114 mm |
| Length | 140 mm |
| Series | ucph200 |
| Weight | 1.21 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 7880 N |
| Basic dynamic load, radial - Cr | 14000 N |
| Width | 34 mm |
Show UNSPSC/ECL@SS
£ 17.17 excl. VAT
/ Each
£ 20.60 incl. VAT
- Delivery usually within ( 3 ) days
