References
SNR:UKFS308H
Rubix:206A2105
EAN:3413529544721

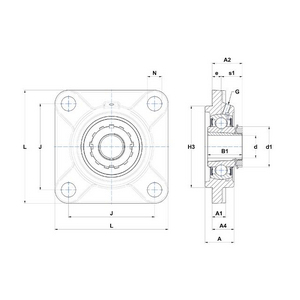

Technical specifications
| Inner diameter | 35 mm |
|---|---|
| Width | 35 mm |
| Fixation centre-to-centre distance | 112 mm |
Product details : SNR UKFS308H BEARING UNIT
grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

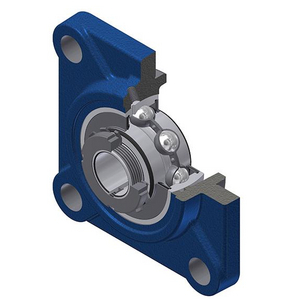

Square flange bearing unit with centering spigot and 4 mounting holes, re-greasable, insert with tapered bore and locking sleeve, H23XX.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 170x170x55 mm |
|---|---|
| Logistic Weight | 3155 g |
| Inner diameter | 35 mm |
| Width | 35 mm |
| Fixation centre-to-centre distance | 112 mm |
| Material | grey cast iron |
| Length | 150 mm |
| Series | ukfs300 |
| Number of holes | 4 |
| Basic static load, radial - C0r | 24000 N |
| Basic dynamic load, radial - Cr | 40560 N |
| Outer diameter | 90 mm |
| Weight | 3.13 kg |
Show UNSPSC/ECL@SS
£ 63.71 excl. VAT
/ Each
£ 76.45 incl. VAT
- Usually arrives within 14 working days
