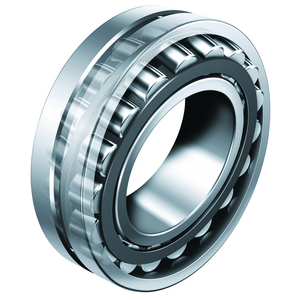

FAG 22248-BE-XL-K-C3 SPHERICAL ROLLER BEARING
Spherical roller bearing
References
fag:22248-BE-XL-K-C3
rubix:274A6259
manufacturer :0680277880030
ean:4012802622362
Technical specifications
| Inner diameter | 240 mm |
|---|---|
| Outer diameter | 440 mm |
| Width | 120 mm |
Product details : FAG 22248-BE-XL-K-C3 SPHERICAL ROLLER BEARING
Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
Strengths
Bearings are subject to high and very high radial loads
In addition to high radial forces, there are also relatively high axial loads on one or both sides
dynamic or static misalignments of the shaft to the housing or deflection of the shaft by the bearing must be compensated for without any constraints
high impact loads must be absorbed dynamically
very stable fixed bearings are necessary.
In addition to high radial forces, there are also relatively high axial loads on one or both sides
dynamic or static misalignments of the shaft to the housing or deflection of the shaft by the bearing must be compensated for without any constraints
high impact loads must be absorbed dynamically
very stable fixed bearings are necessary.
Technical specifications
Attributes
| Logistic Weight | 78000 g |
|---|---|
| Inner diameter | 240 mm |
| Outer diameter | 440 mm |
| Width | 120 mm |
| Bearing Clearance | C3 |
| Series | 222..-BE-XL-K |
| Reference speed | 1200 rpm |
| Limit speed | 1900 rpm |
| Basic static load, radial - C0r | 2900000 N |
| Basic dynamic load, radial - Cr | 2230000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 2,499.47 excl. VAT
/ Each
£ 2,999.36 incl. VAT
Usually arrives within 14 working days
