SKF SPHER ROLLER BEARING 23032 CCK/C4W33
Spherical Roller Bearing
References
skf:23032 CCK/C4W33
rubix:104A9304
manufacturer :35662
ean:7316576655135
Technical specifications
| Inner diameter | 160 mm |
|---|---|
| Outer diameter | 240 mm |
| Width | 60 mm |
Product details : SKF SPHER ROLLER BEARING 23032 CCK/C4W33

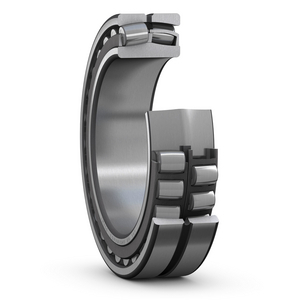

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 60x240x240 mm |
|---|---|
| Logistic Weight | 8880 g |
| Inner diameter | 160 mm |
| Outer diameter | 240 mm |
| Width | 60 mm |
| Bearing Clearance | C4 |
| Series | 230C |
| Reference speed | 2400 rpm |
| Limit speed | 3000 rpm |
| Basic static load, radial - C0r | 880000 N |
| Basic dynamic load, radial - Cr | 506000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 810.60 excl. VAT
/ Each
£ 972.72 incl. VAT
Usually arrives within 14 working days
