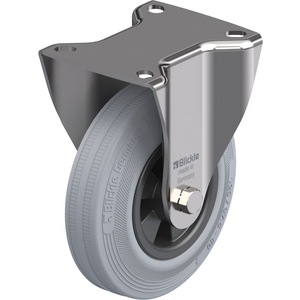

BLICKLE BX-VPP125XR-SG FIXED CASTOR
Stainless steel swivel castor, with top plate fitting Heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, grey, with synthetic thread guard
References
blickle:BX-VPP 125XR-SG
rubix:208A4440
manufacturer :280768
ean:4047526280765
Technical specifications
| Load capacity | 100 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 38 mm |
Product details : BLICKLE BX-VPP125XR-SG FIXED CASTOR
Bracket: LEX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POEV series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
- with synthetic thread guard, small
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 865 g |
|---|---|
| Load capacity | 100 kg |
| Wheel diameter | 125 mm |
| Wheel width | 38 mm |
| Wheel housing/rim material | Polypropylene |
| Running sole/tire material | Rubber |
| Min. temperature | -20 °C |
| Max. temperature | 60 °C |
| Total height | 150 mm |
| Type of bearing | Roller bearing |
| Running sole / tire colour | Grey |
| Shore A Hardness | 80 Shore |
| Plate width | 85 mm |
| Plate length | 100 mm |
| 150 mm | |
| 37,5 mm |
Show UNSPSC/ECL@SS
£ 41.85 excl. VAT
/ Each
£ 50.22 incl. VAT
Usually arrives within 14 working days
