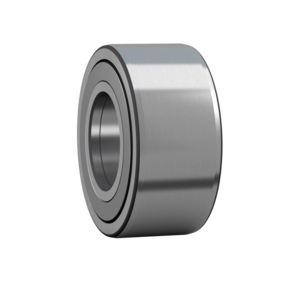

SKF NATV10PPXA TRACK ROLLER YOKE-TYPE
Support rollers (Yoke-type track rollers)
References
skf:NATV 10 PPXA
rubix:226A5117
manufacturer :138742
ean:7316571589954
Technical specifications
| Inner diameter | 10 mm |
|---|---|
| Outer diameter | 30 mm |
| Width | 15 mm |
Product details : SKF NATV10PPXA TRACK ROLLER YOKE-TYPE
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.
Strengths
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Ready to mount
- Sealed for increased reliability, with relubrication feature
- Accommodate axial loads due to skew or tilting
- Long service life
- Ready to mount
- Sealed for increased reliability, with relubrication feature
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 15x30x30 mm |
|---|---|
| Logistic Weight | 65 g |
| Inner diameter | 10 mm |
| Outer diameter | 30 mm |
| Width | 15 mm |
| Sealing | open |
| Bearing Clearance | cn |
| Series | natv |
| Material | bearing steel |
| Cage | other |
| Limit speed | 3200 rpm |
| Basic static load, radial - C0r | 14.6 N |
| Basic dynamic load, radial - Cr | 8.97 N |
Show UNSPSC/ECL@SS
£ 45.93 excl. VAT
/ Each
£ 55.12 incl. VAT
Usually arrives within 14 working days
