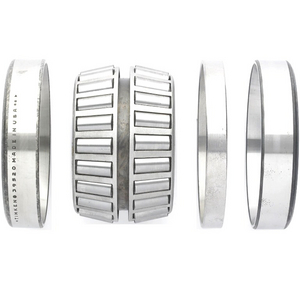

Tapered roller bearing Timken 395TD-90110, Outer diameter: 110 mm | Inner diameter: 64.971 mm | Width: 55.55 mm
Tapered Roller Bearing Double Cone Assembly
References
timken:395TD-90110
rubix:397A7633
ean:0053893027845
Technical specifications
| Inner diameter | 64.971 mm |
|---|---|
| Outer diameter | 110 mm |
| Width | 55.55 mm |
Product details : TIMKEN 395TD-90110 TAPERED ROLLER BEARING DOUBLE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Strengths
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Applications
Gear reduction units; Calendar rolls; Industrial machinery
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 55,55x110x110 mm |
|---|---|
| Logistic Weight | 2037 g |
| Packaged dimensions (D x W x H) | 114,3x82,55x114,3 mm |
| Inner diameter | 64.971 mm |
| Outer diameter | 110 mm |
| Width | 55.55 mm |
Show UNSPSC/ECL@SS
£ 1,283.95 excl. VAT
/ Each
£ 1,540.74 incl. VAT
Usually arrives within 14 working days
