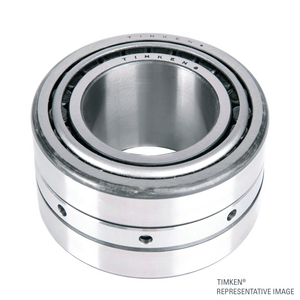

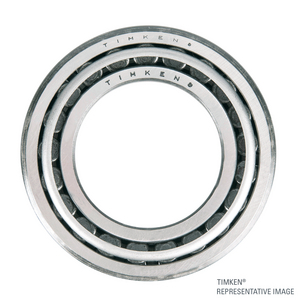

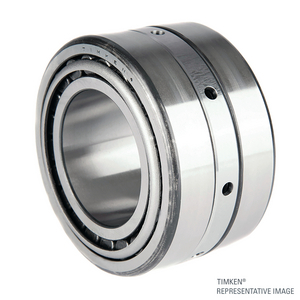

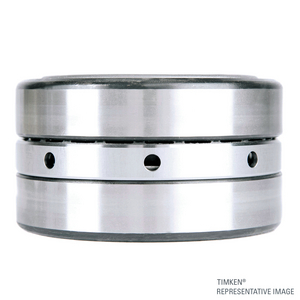

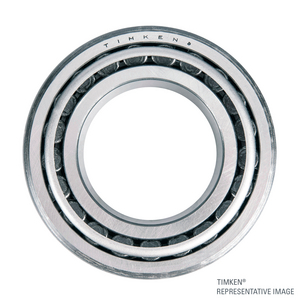

Tapered roller bearing Timken 767D-90171, Outer diameter: 161.925 mm | Inner diameter: 88.9 mm | Width: 101.6 mm
Tapered Roller Bearing Double Cone Assembly
References
timken:767D-90171
rubix:397A5488
manufacturer :100014809
ean:0053893086453
Technical specifications
| Inner diameter | 88.9 mm |
|---|---|
| Outer diameter | 161.925 mm |
| Width | 101.6 mm |
Product details : TIMKEN 767D-90171 TAPERED ROLLER BEARING
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Strengths
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Applications
Gear reduction units; Calendar rolls; Industrial machinery
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 101,6x162,052x162,052 mm |
|---|---|
| Logistic Weight | 8909 g |
| Packaged dimensions (D x W x H) | 107,95x171,45x171,45 mm |
| Package weight | 8909,5 g |
| Inner diameter | 88.9 mm |
| Outer diameter | 161.925 mm |
| Width | 101.6 mm |
| Bearing Clearance | CN |
Show UNSPSC/ECL@SS
£ 3,462.38 excl. VAT
/ Each
£ 4,154.86 incl. VAT
Usually arrives within 14 working days
