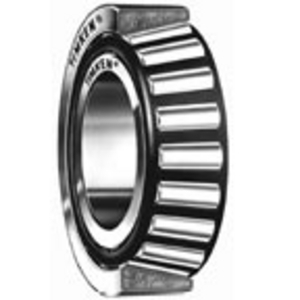

Tapered roller bearing Timken 25590/25522, Outer diameter: 83.058 mm | Inner diameter: 45.618 mm | Width: 23.876 mm

Tapered Roller Bearing

See technical informationSee documents

References

Timken:25590/25522
Rubix:100A8414
EAN:0053893287713
brand logo

Technical specifications

Inner diameter45.618 mm
Outer diameter83.058 mm
Width23.876 mm
See all Specifications

Documents

Product details : TIMKEN 25590-99403 TAPERED ROLLER BEARING

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Technical specifications

Attributes
Inner diameter45.618 mm
Outer diameter83.058 mm
Width23.876 mm
Bearing Clearancecn
Weight0.5 kg
Series25500
Materialstamped steel (cage)
Cagesteel
Total bearing width25.4 mm
StandardINCH (IMPERIAL)
Basic static load, radial - C0r111000 N
Basic dynamic load, radial - Cr90500 N
£ 51.24 excl. VAT
/ Each
£ 61.49 incl. VAT
  • Delivery usually within ( 7 ) days
