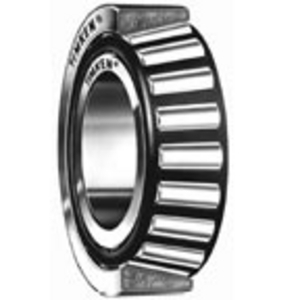

Tapered roller bearing Timken 45287/45220, Outer diameter: 104.775 mm | Inner diameter: 53.975 mm | Width: 30.163 mm

Tapered Roller Bearing

See technical informationSee documents

References

Timken:45287/45220
Rubix:104A9504
EAN:0053893783130
brand logo

Technical specifications

Inner diameter53.975 mm
Outer diameter104.775 mm
Width30.163 mm
See all Specifications

Documents

Product details : TIMKEN 45287-99402 TAPERED ROLLER BEARING

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft

Technical specifications

Attributes
Inner diameter53.975 mm
Outer diameter104.775 mm
Width30.163 mm
Bearing Clearancecn
Weight1.2 kg
Series45200
Materialstamped steel
Cagesteel
Total bearing width30.163 mm
Basic static load, radial - C0r189000 N
Basic dynamic load, radial - Cr153000 N
£ 97.60 excl. VAT
/ Each
£ 117.12 incl. VAT
  • Usually arrives within 14 working days
